ECHOMAP UHD 63cv Transducer
JOIN THE CLUB. FIND MORE FISH.

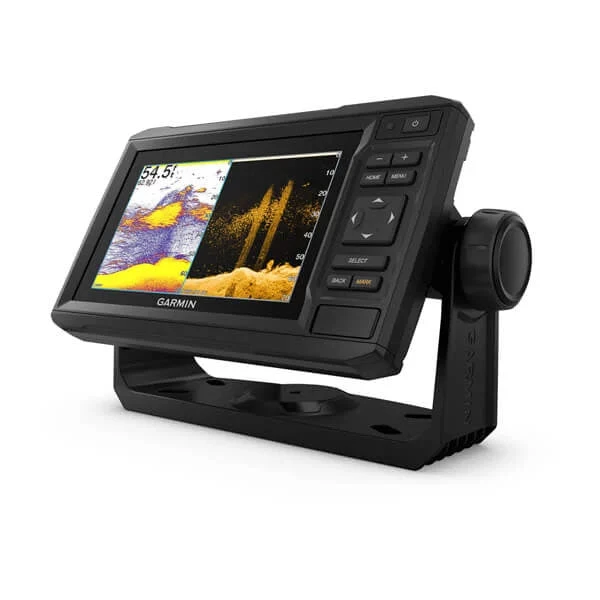

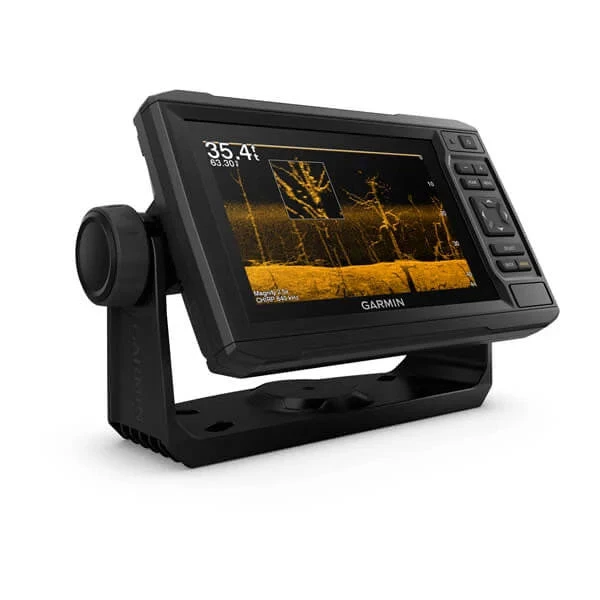

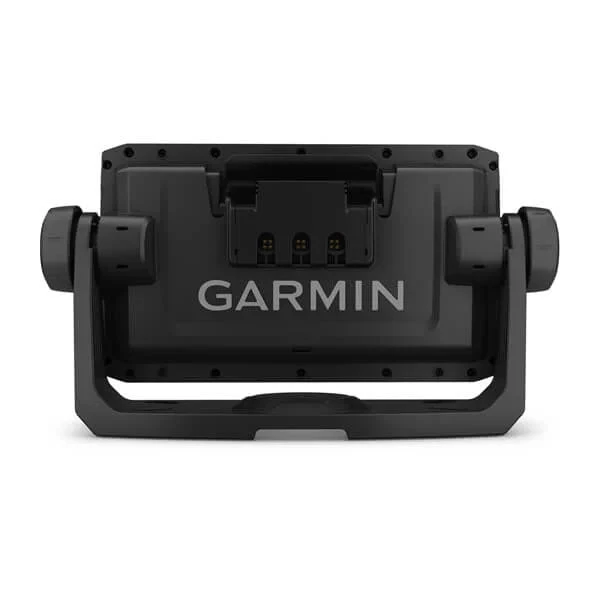

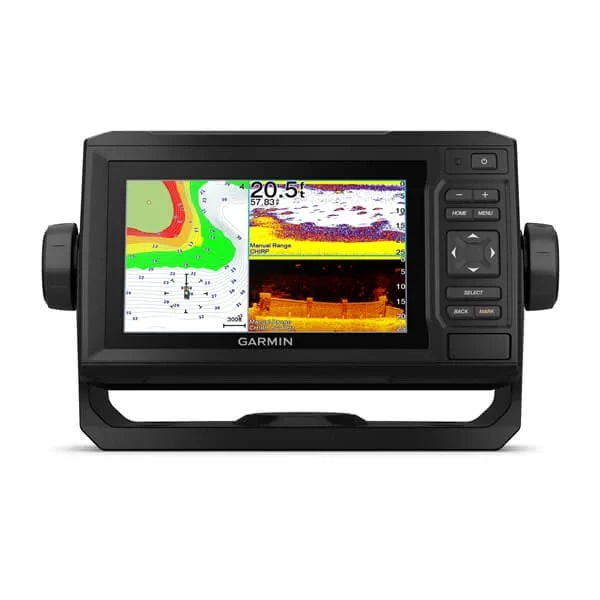

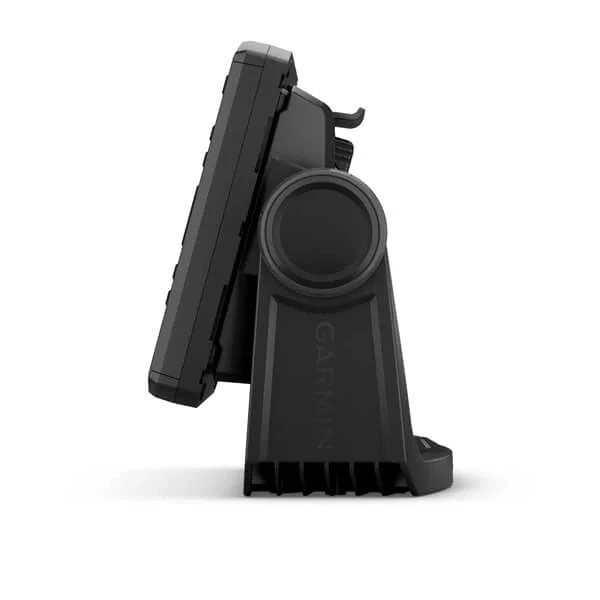

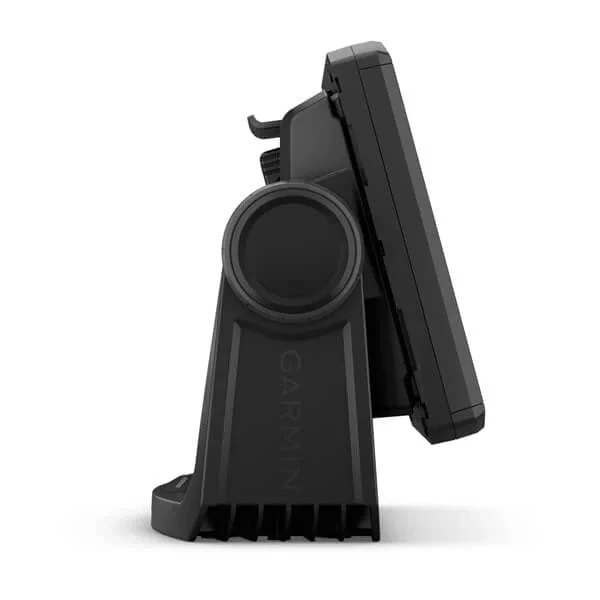

The sunlight-readable 6” chartplotter features a quick-release bail mount and a transducer for Ultra High-Definition scanning sonar and CHIRP traditional sonar.
With the ECHOMAP UHD 63cv Transducer, you can see below your boat in incredible detail with an included transducer. Navigate any waters with preloaded LakeVü g3 inland maps and manage your marine experience from nearly anywhere. Also, create your own maps on the fly and tailor them to fit your needs.
| ✔ | TIDE TABLES |
| ✔ | GARMIN SONAR COMPATIBLE |
| ✔ | SUPPORTS AIS |
| ✔ | SUPPORTS DSC |
| ✔ | ACTIVECAPTAIN COMPATIBLE |
| ✔ | DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
| ✔ | DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
| ✔ | BOTTOM LOCK |
| ✔ | WATER TEMPERATURE LOG AND GRAPH |
| ✔ | SONAR RECORDING |
| ✔ | SONAR HISTORY REWIND |
| ✔ | NMEA 2000® COMPATIBLE |
| ✔ | WIRELESS CONNECTIVITY |
ECHOMAP UHD 63cv Specs
- Physical Dimensions: 8.6″ x 5.1″ x 2.6″
- Display Size: 5.4″ x 3.1″; 6.2″ diagonal
- Display Resolution: 400 x 800 pixels
- Display Type: WVGA display
- Weight: 1.6 lbs
- Mounting Options: Bail or flush
- Water Rating: IPX7
- Power Consumption: 12W
- Antenna: Internal or external over NMEA 0183
- Transmit Power: 500 W (RMS) / 4,000 W (peak to peak)
- Receiver: 5 Hz
- Garmin Marine Network Ports: None
- Preloaded Maps: LakeVü g3 (inland maps)
- Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
- Waypoints: 5,000
- Track Log: 50,000 points; 50 saved tracks
- Routes: 100
- ClearVu: Yes with CHIRP (built-in)
- Maximum Depth: 2,300 ft @ 77 kHz- freshwater, 1,100 ft @ 77 kHz-saltwater (depth capacity is dependent on water bottom type and other water conditions)
- Transducer Pin numbers: 4
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
ECHOMAP UHD 63cv Features
Preloaded Mapping
Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data that covers more than 17,000 lakes with up to 1’ contours.
Quickdraw Contours
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.
NMEA 2000 and NMEA 0183 Networks
Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.
Included Transducer
This chartplotter comes with a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.
ActiveCaptain App
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data and more.
