LiveScope™ Plus System
THE BEST OF THE BEST JUST GOT BETTER
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images, and better target separation.
See images clearly with improved screen clarity, transducer sensitivity, and target separation. Scan surroundings with sharper images, reduced noise, and fewer sonar artifacts. Get maximum contrast and clarity in your images with vivid color palettes. Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount. You are also able to upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.

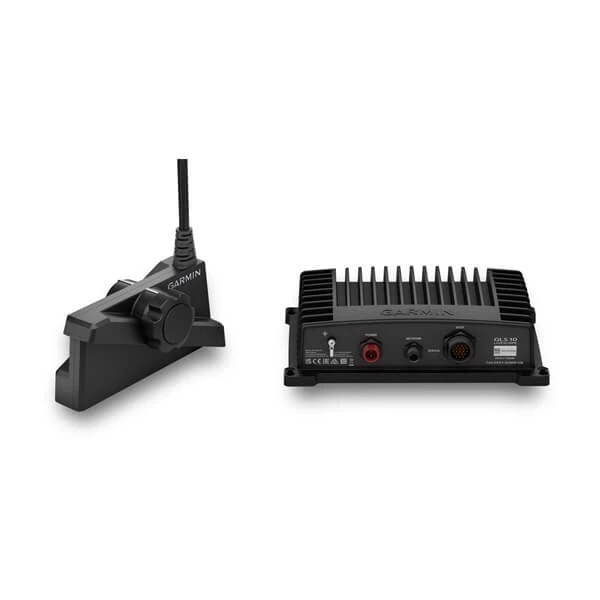

LiveScope Plus System Includes: LiveScope GLS 10 sonar black box, Panoptix LVS34 transducer, Perspective mount, Trolling motor barrel mount, Shaft mount, Power cable, 2 meter Garmin Marine Network cable (small connector), Network adapter cable, and Documentation.

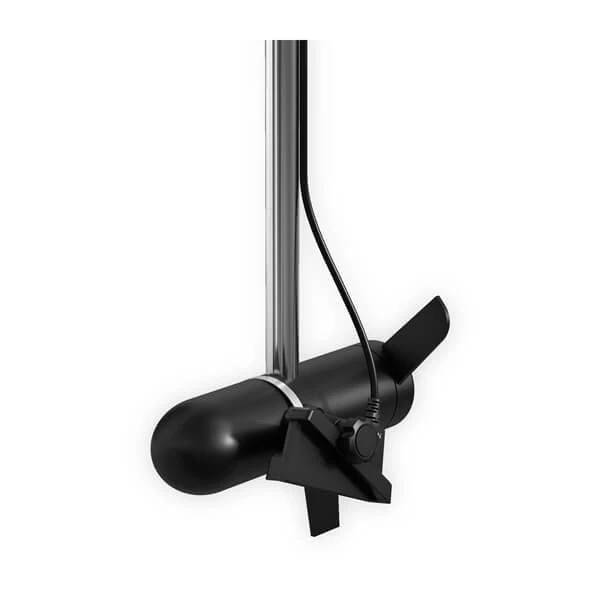

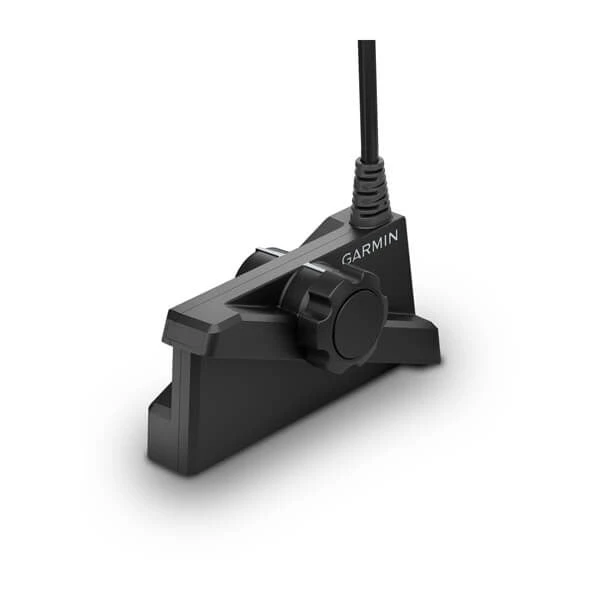

Transducer Only Includes: Panoptix LVS34 transducer, Perspective mount, Trolling motor barrel mount, Shaft mount, and Documentation.
Garmin LiveScope™ Plus Specs
- Dimensions GLS 10 Black Box: 9.7” x 5.9” x 2.6”
- Dimensions LVS34 Transducer: 6.4” x 3.1” x 1.9”
- Weight GLS 10 Black Box: 4.3 lbs
- Weight LVS34 Transducer: 1.9 lbs
- Waterproof: IPX7
- Temperature Range GLS 10 Black Box: -15 C to 70 C
- Temperature Range LVS34 Transducer: 0 C to 40 C
- Frequency: 530 – 1,100 kHz
- Maxdepth: Down and Forward: 200’ (61.0 m)
- Connections: 1 Small Connector
- Power Input: 10-32 V
- Power Usage: 21 W typical, 58 W max
- Transmit Power: 500 W
- Fuse: 7.5 A
- Compass-Safe Distance: 4″ (0.1 m)
- Minimum depth: 3′ (0.91 m)
- Sonar type: Live
- Beamwidth: 20° x 135°
- Transducer cable length: 20 ft
- Transducer number of pins: 21
Garmin LiveScope™ Plus Features
CLEAR VISION: See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.
IMAGE STABILIZATION: A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
VIVID COLOR PALETTES: Choose from seven vivid color options — including Aqua, Caribbean, Lava, and more — to see fish and structure in maximum contrast and clarity.
REAL-TIME IMAGES: Real-time sonar ensures that your live images are as accurate as possible.
FORWARD MODE: Scout ahead of your boat to see what’s happening in real-time.
DOWN MODE: Explore live views of the activity directly beneath your boat.
PERSPECTIVE MODE: See under the water with a view from your perspective above the water.
Your Satisfaction with Garmin is Guaranteed:
- 2 Year Limited Warranty
- Free Shipping & No Sales Tax in the U.S.
| Sonar Module Included | LiveScope Plus System (9 Left in Stock & Ready to Ship), LiveScope™ Plus LVS34 Transducer only (ETA August) |
|---|
